Diamond multi-wire saw for marble block cutting

Diamond multi-wire saw for marble block cutting

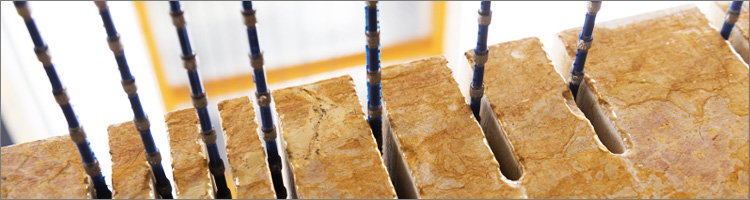

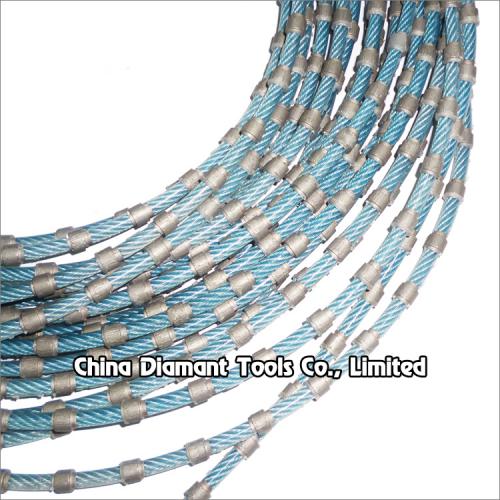

This plastic coating diamond multi-wire saw with hot-press sintered beads, which is installed in multi-wire machine to cut block into slabs. Compared to traditional marble gang saw, it is also an alternative for granite slab cutting, it is a relatively new concept which is still being developed.

Diamond multi-wire saw have the following advantage:

 · Small installation area, simple and inexpensive machine foundations;
 · Easy operation and high flexibility;
 · It can cut stones with different hardness.
 · Fast cutting speed, it is 10-15 times more effective than traditional gang saw cutting;
 · Low noise and friendly surroundings, the water demand is low, and it can be recycled;
 · Smooth cutting surface, get the even and smooth slabs;
 · Always involve low power consume and less raw material waste;
 · Low maintenance costs;
 · Easy manipulation, high yield and low cost, safety and environmental protection etc.

Code No.	Diameter	Fixing Type	Beads No. pcs/M
DMWSM8.3	Ф8.3mm	Plastic	32pcs
DMWSM7.3	Ф7.3mm	Plastic
DMWSM6.3	Ф6.3mm	Plastic
DMWSM5.3	Ф5.3mm	Plastic

Our diamond wire have the following features:

 · Suitable for multi wire saw with 5 to 60 wires as a group.
 · Injecting endless diamond wire is applied to lower wire broken off.
 · Strong cable with very little distortion effectively reduces mutual interference between the closed loop wire when the wires are cutting the stone.
 · Wire pre-sharpened by machine to ensure easy starting on various granites.
 · Used to the end of its life without the need for re-coating on it.
 · Perfect to match with SIMEC, Universo, Gaspari, Pellegrini and Bidese(Breton) multi wire saw machines.

Please inform the following if you would like to place order:

  Code No. of diamond wire
  Diameter of the Wire (8.3mm, 7.3mm, 6.3mm or 5.3mm)
  Wire type (Plastic)
  Marble type (Hard, medium, soft, or abrasive)
  Order quantity (How many pcs, and how many meters per pc)
  Wire saw machine power (How many KW or HP of the motor)
